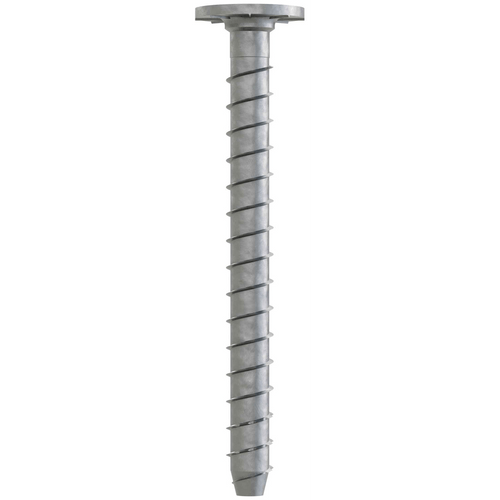

The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry.
The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor.
The anchor's 6-lobe drive eases driving and is less prone to stripping.
Key Features
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
- Available in 1/2" and 5/8" diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- For added convenience, a 1/2" socket adapter and two T-drive bits included in each box
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
Material
- Carbon steel
Finish
- Mechanically galvanized
